Rigid couplings, which are in some cases called sleeve or muff couplings, have been historically imprecise, economical, and frequently homemade segments for a straightforward shaft to shaft associations.
In the past, numerous individuals would not think about utilizing a rigid coupling in any servo application.

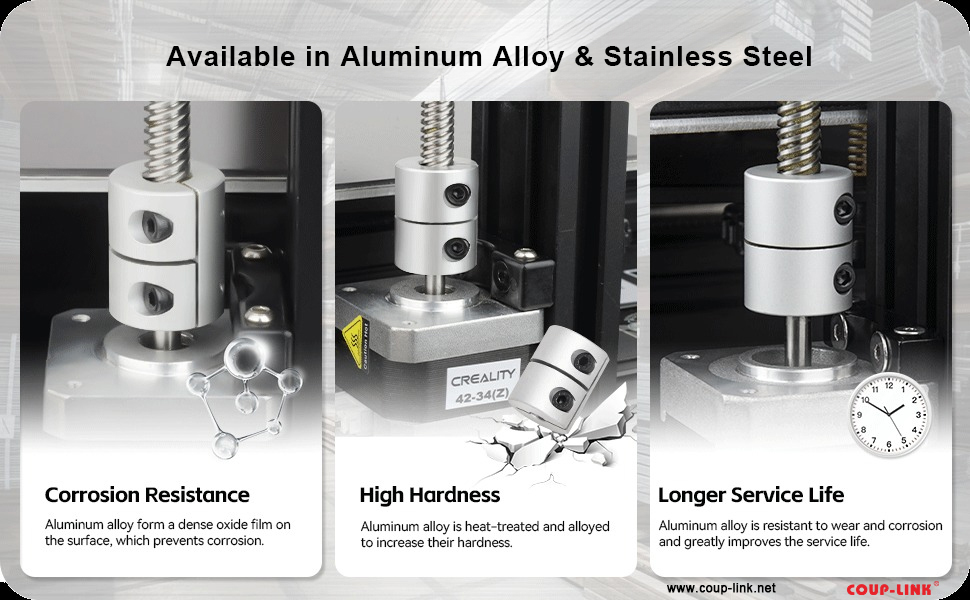

However, littler estimated rigid couplings, particularly made of aluminium, are progressively being utilized in movement control applications because of their high torque limit, firmness, and zero kickback.
Rigid couplings are torsionally stiff couplings with for all intents and purposes zero windups under torque loads. In the event that any misalignment is available in the framework, the forces will cause the shafts, bearings or coupling to flop prematurely.
Rigid couplings can’t be kept running at very high rpm’s for the reason that they can’t adjust for any thermal changes in the shafts which are brought about by the high-speed use.
In any case, where misalignment can be firmly controlled rigid couplings offer excellent performance characteristics in servo applications.
An occasionally overlooked advantage of rigid couplings is they can be utilized to build up shaft alignment in misaligned systems. To build up shaft alignment the engine and segment mounts should be relaxed to guarantee there is free development.
Then connect the shafts with the rigid coupling which, if accurately made, will adjust the shafts. In conclusion, focus the segments on any staying free play and fix the mounts.
Rigid couplings clamp onto and join two shafts, influencing them to work as one, yet unlike too many coupling types, don’t accommodate for misalignment.

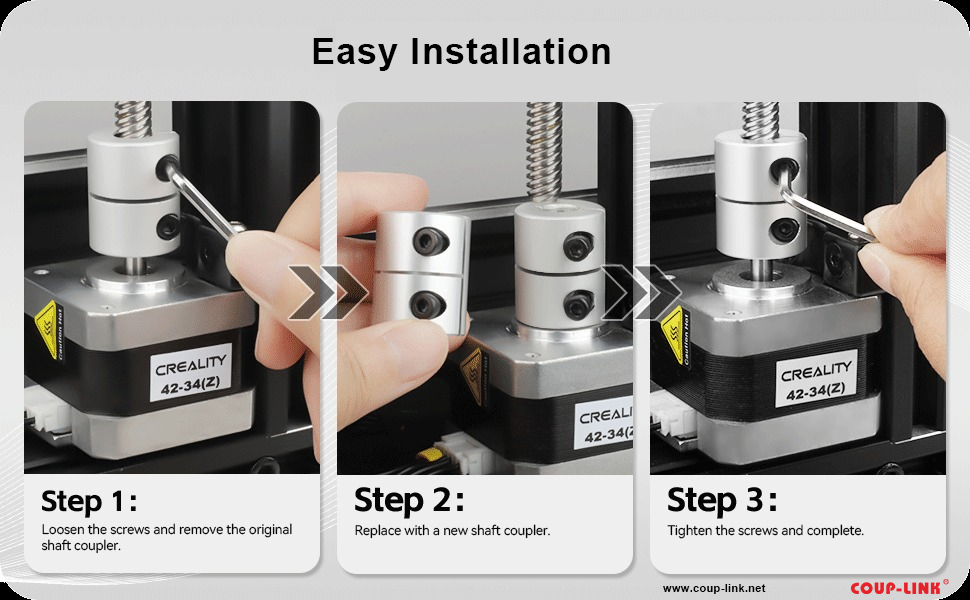

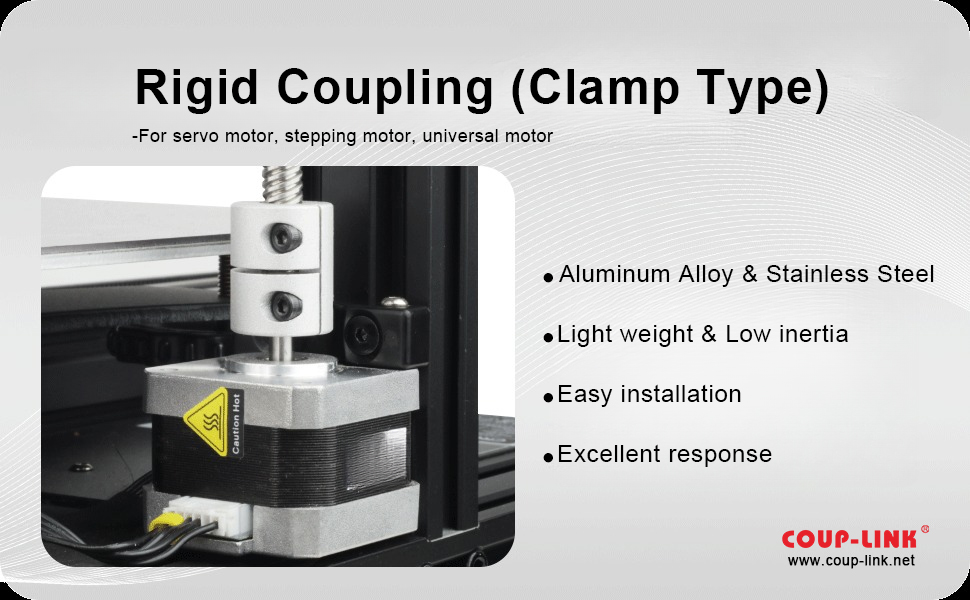

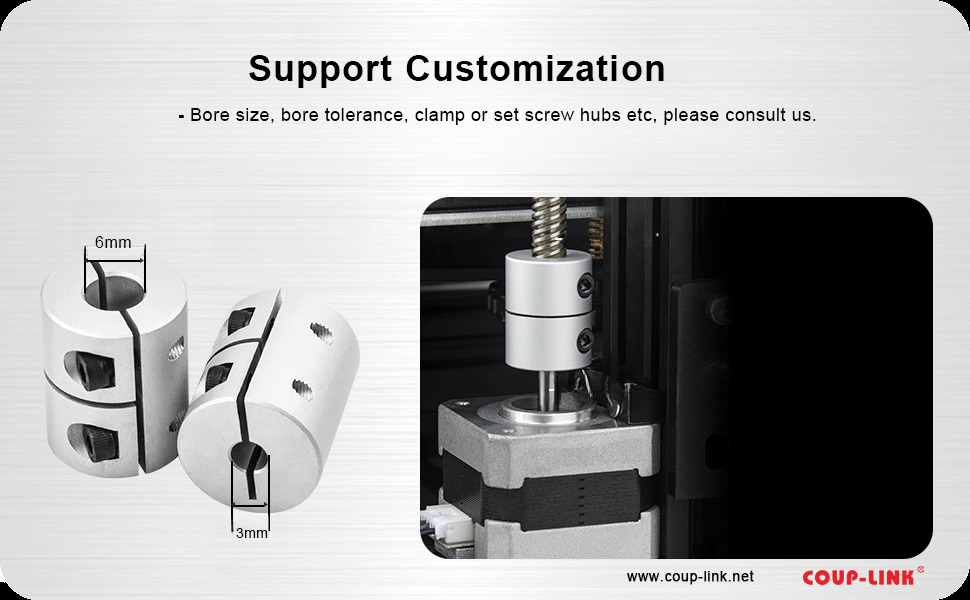

Rigid Couplings are offered in many different designs, with or without keyways, for connecting supported shafts. One-piece designs are slip over the shafts ends closely and are bit by bit and successively clipped by fixing the bolts.
This enables the coupling to “seat” on the shaft. Working also to the one-piece plan, two-piece clamp couplings can be assembled anywhere and any point of time because they come apart without mechanisms and tools.
Three-piece plans can likewise be introduced anywhere, however, they can likewise remain gathered on one shaft while they are dismantled from the other.
Required features for Motion Control
There are a few highlights expected of rigid couplings to guarantee appropriate execution in motion control applications.
The most vital component is that the coupling itself does not bring misalignment into a system where it can’t be retained without harm to course and seals.
The strictest control of shaft arrangement will result when the bores are honed, since honing guarantees that the two bores are collinear. Sharpening additionally amends any remaining bends brought about by stresses presented amid the assembling procedure, bringing about around, decisively estimated bore.
Proper sizing and geometry guarantee a large level of shaft contact and more prominent torque transmission capacity.
Proper Installation and Special Design
Most clamp-style rigid couplings have been structured with cap bolts near each other and masterminded in sets.
Particularly when joined with a cross-cut, this design facilitates encourages more prominent holding power and furthermore obliges slight deviations in the span of the two shafts being associated.
It is suggested that this style of coupling be introduced by fixing the combined fastens then again a few stages. This is on the grounds that the nearness of the bolts results in a commonality of the circle pressure created in the coupling by each screw in a pair.
As each bolt is fixed it will, in general, loosen up any strain created by its companion. On the other hand, fixing the bolts a few stages appropriate the strain all the more equally, guaranteeing a more tightly fit and the ideal holding power.
